Endoscopic Kerrison Rongeur, 10", 12" and 14"

Endoscopic Kerrison Rongeur

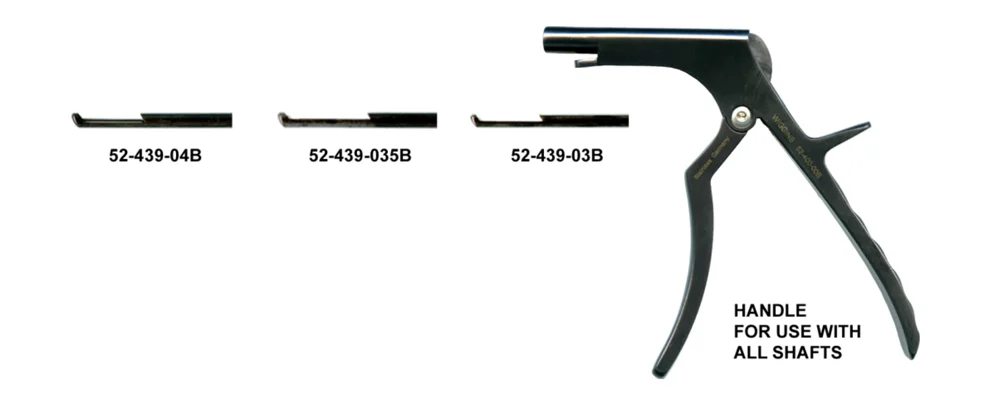

Long-shaft Kerrison rongeurs made for endoscopic and tubular approaches, in 10″, 12″ and 14″ lengths with 3mm, 3.5mm and 4mm bites.

Description

Endoscopic Kerrison Rongeur

Working down a tube changes what a Kerrison needs to be. The shaft has to reach the bone without the handle fouling the port, and the profile has to stay slim enough that the instrument does not become the thing blocking your view.

These are built for that. Shafts of 10″, 12″ and 14″ reach through standard endoscopic and tubular ports to the lateral recess, and the slim profile leaves room to see past the instrument while you work.

That matters clinically, not just ergonomically. In lumbar stenosis, limited visualization is what pushes surgeons into removing more facet than they intended, and more facet removed means more instability to worry about later. An instrument that lets you see what you are biting is an instrument that lets you take less.

Bites of 3mm, 3.5mm and 4mm cover the usual decompression work. Black non-glare coating throughout, and made to be reprocessed and serviced like every Wiggins Kerrison.

Kerrison Footplate Thickness

Footplate thickness by jaw width, all ±0.1mm. The footplates and bites offered on this instrument are listed under Available Options below. See the full Kerrison sizes and footplate chart.

Jaw width	Standard footplate	Thin footplate	Ultra-thin footplate
1mm	2.1mm	1.7mm	1.3mm
2mm	2.3mm	1.8mm	1.5mm
2.5mm	2.5mm	1.9mm	Not offered
3mm	2.6mm	2.0mm	1.6mm
3.5mm	2.7mm	Not offered	Not offered
4mm	2.8mm	2.2mm	1.8mm
5mm	3.0mm	2.4mm	2.0mm
6mm	3.3mm	Not offered	Not offered

Diagram showing Kerrison footplate thickness measured at the lower end of the cut, at 90° to the cut — How footplate thickness is measured: at the lower end of the cut, at 90° to the cut.

Available Options

Length: 10″, 12″, 14″
Bite Width: 3mm, 3.5mm, 4mm

Why Wiggins

Wiggins Medical has been putting dependable instruments in surgeons’ hands since 1992. We are the Home of the Original Black Kerrison, and every instrument we offer is held to that same standard: built to last, inspected by hand and backed by folks who answer the phone.

Pricing is by quote. Choose your options above and select Add to Quote, and our team will get back to you promptly with pricing and lead times.
