The standard Kerrison, biting 40° or 90° up: six footplate options across standard, thin and ultra-thin, six working lengths from 7″ to 14″, and nine bite widths from 0.6mm to 6mm, with or without ejector.

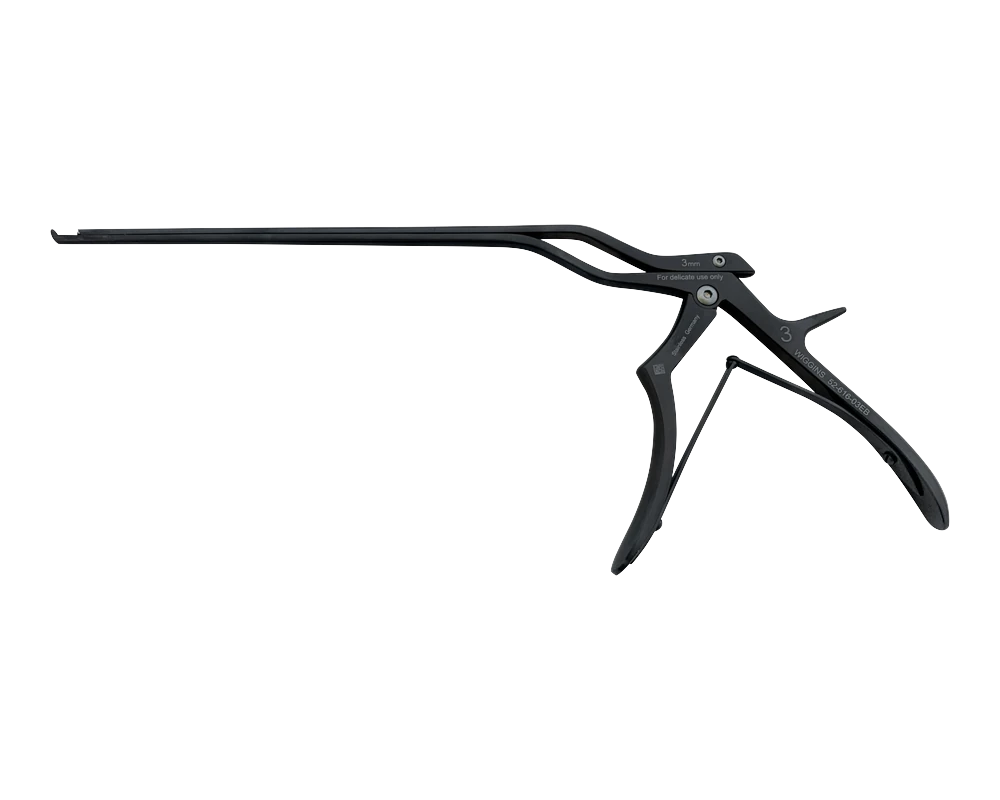

Kerrison Rongeur, 40° and 90° Up
Description
Kerrison Rongeur, 40° and 90° Up
Biting upward is the default for a reason. Working from behind, the bone you want is above the jaw, and a Kerrison that bites up takes it without asking your wrist to do anything unnatural.
This is the broadest configuration in the line, because it is the one that has to fit every set. Six footplate options: standard, thin and ultra-thin, each with or without an ejector. Six working lengths from 7″ for cervical work out to 14″ for a deep or lateral approach. Nine bite widths from 0.6mm for the tightest stenotic canal up to 6mm for clearing lamina in quantity.
The footplate is where the real decision sits. A standard plate is strongest; a thin or ultra-thin plate buys you clearance beneath ligament and bone in a canal that has none to spare. Our footplate thickness chart lays out exactly what each plate measures so you can choose on numbers rather than on feel.
The ejector clears each bite so debris does not pack back into the jaw. And every one carries the black non-glare coating that has been our signature since 1992. That’s the Original Black Kerrison, hand finished, built to be serviced and resharpened rather than replaced.

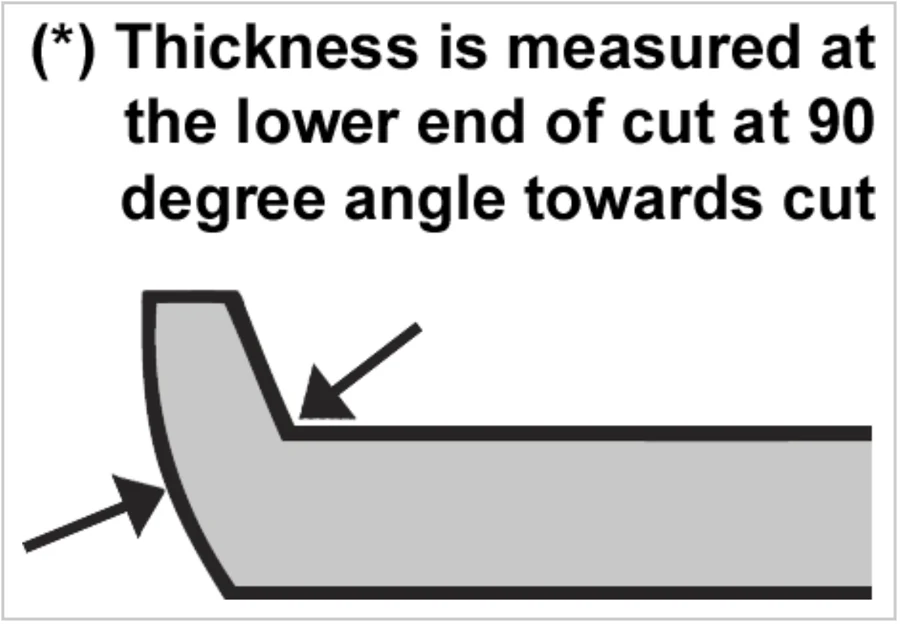

Kerrison Footplate Thickness
Footplate thickness by jaw width, all ±0.1mm. The footplates and bites offered on this instrument are listed under Available Options below. See the full Kerrison sizes and footplate chart.
| Jaw width | Standard footplate | Thin footplate | Ultra-thin footplate |
|---|---|---|---|
| 1mm | 2.1mm | 1.7mm | 1.3mm |
| 2mm | 2.3mm | 1.8mm | 1.5mm |
| 2.5mm | 2.5mm | 1.9mm | Not offered |
| 3mm | 2.6mm | 2.0mm | 1.6mm |
| 3.5mm | 2.7mm | Not offered | Not offered |
| 4mm | 2.8mm | 2.2mm | 1.8mm |
| 5mm | 3.0mm | 2.4mm | 2.0mm |
| 6mm | 3.3mm | Not offered | Not offered |
Available Options
- Footplate: Standard, With Ejector; Standard, No Ejector; Thin, With Ejector; Thin, No Ejector; Ultra-Thin, With Ejector; Ultra-Thin, No Ejector
- Working Distance: 7″, 8″, 9″, 10″, 12″, 14″
- Bite Width: .6mm, 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm
Why Wiggins
Wiggins Medical has been putting dependable instruments in surgeons’ hands since 1992. We are the Home of the Original Black Kerrison, and every instrument we offer is held to that same standard: built to last, inspected by hand and backed by folks who answer the phone.
Pricing is by quote. Choose your options above and select Add to Quote, and our team will get back to you promptly with pricing and lead times.
Additional information
| Footplate | Standard, With Ejector, Standard, No Ejector, Thin, With Ejector, Thin, No Ejector, Ultra-Thin, With Ejector, Ultra-Thin, No Ejector |
|---|---|
| Working Distance | 7", 8", 9", 10", 12", 14" |
| Bite Width | .6mm, 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm |
