Detachable Curved Kerrison Rongeurs, Standard and Slight Curve

Detachable Curved Kerrison Rongeurs

Curved Kerrison rongeurs that come apart for cleaning: Standard Curve in 2mm and 3mm bites, Slight Curve in 1mm to 3mm, 8″ with a thin footplate and the Wiggins black non glare coating.

Description

Detachable Curved Kerrison Rongeurs

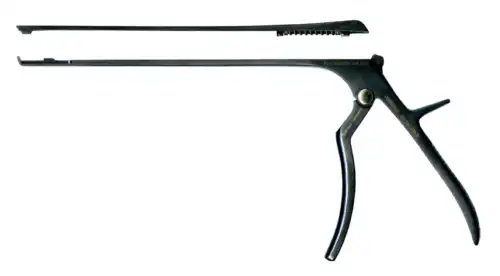

This is our curved Kerrison, made to come apart. The curve of the shaft still carries the footplate out and around the pedicle, so you can open a narrowed foramen or work beneath the lamina without taking more facet than you need. Once the case is done, the shaft separates from the handle so every surface can be inspected and cleaned, and it goes back together true.

Two curve profiles cover the work: the Standard Curve in 2mm and 3mm bites, a favorite for foraminotomy, and the Slight Curve in 1mm, 2mm and 3mm, which suits sublaminar decompression. All are 8″ with a thin footplate that slips into tight spaces near the nerve.

Like every Wiggins Kerrison, they are hand finished, carry our signature black non glare coating and are built to be reprocessed and sharpened for years of service. For fixed shaft curved Kerrisons in all six profiles, see our Curved Kerrison Rongeurs.

Kerrison Footplate Thickness

Footplate thickness by jaw width, all ±0.1mm. The footplates and bites offered on this instrument are listed under Available Options below. See the full Kerrison sizes and footplate chart.

Jaw width	Standard footplate	Thin footplate	Ultra-thin footplate
1mm	2.1mm	1.7mm	1.3mm
2mm	2.3mm	1.8mm	1.5mm
2.5mm	2.5mm	1.9mm	Not offered
3mm	2.6mm	2.0mm	1.6mm
3.5mm	2.7mm	Not offered	Not offered
4mm	2.8mm	2.2mm	1.8mm
5mm	3.0mm	2.4mm	2.0mm
6mm	3.3mm	Not offered	Not offered

Diagram showing Kerrison footplate thickness measured at the lower end of the cut, at 90° to the cut — How footplate thickness is measured: at the lower end of the cut, at 90° to the cut.

Available Options

Bite Width: 2.0mm, 3.0mm, 4.0mm
Curve Profile: Lesser Curve, Slight Curve, Slight Curve Short Footplate, Slight Curve Twisted Left, Slight Curve Twisted Right, Standard Curve
Footplate: Thin, Ultra-Thin

Part Numbers

Bite	Curve Profile	Footplate	Part No.
2.0mm	Lesser Curve	Ultra-Thin	52-350-02/9SPFB
2.0mm	Slight Curve	Thin	52-350-02B
2.0mm	Slight Curve	Ultra-Thin	52-350-02SPFB
2.0mm	Slight Curve Short Footplate	Thin	52-305-02B
2.0mm	Slight Curve Short Footplate	Ultra-Thin	52-305-02SPFB
2.0mm	Slight Curve Twisted Left	Thin	52-350-02YLCPFB
2.0mm	Slight Curve Twisted Right	Thin	52-350-02YRCPFB
2.0mm	Standard Curve	Thin	52-300-02B
2.0mm	Standard Curve	Ultra-Thin	52-300-02SPFB
3.0mm	Lesser Curve	Ultra-Thin	52-350-03/9SPFB
3.0mm	Slight Curve	Thin	52-350-03B
3.0mm	Slight Curve	Ultra-Thin	52-350-03SPFB
3.0mm	Slight Curve Short Footplate	Thin	52-305-03B
3.0mm	Slight Curve Short Footplate	Ultra-Thin	52-305-03SPFB
3.0mm	Slight Curve Twisted Left	Thin	52-350-03YLCPFB
3.0mm	Slight Curve Twisted Right	Thin	52-350-03YRCPFB
3.0mm	Standard Curve	Thin	52-300-03B
3.0mm	Standard Curve	Ultra-Thin	52-300-03SPFB
4.0mm	Lesser Curve	Ultra-Thin	52-350-04/9SPFB
4.0mm	Slight Curve	Thin	52-350-04B
4.0mm	Slight Curve	Ultra-Thin	52-350-04SPFB
4.0mm	Slight Curve Short Footplate	Thin	52-305-04B
4.0mm	Slight Curve Short Footplate	Ultra-Thin	52-305-04SPFB
4.0mm	Slight Curve Twisted Left	Thin	52-350-04YLCPFB
4.0mm	Slight Curve Twisted Right	Thin	52-350-04YRCPFB
4.0mm	Standard Curve	Thin	52-300-04B
4.0mm	Standard Curve	Ultra-Thin	52-300-04SPFB

Why Wiggins

Wiggins Medical has been putting dependable instruments in surgeons’ hands since 1992. We are the Home of the Original Black Kerrison, and every instrument we offer is held to that same standard: built to last, inspected by hand and backed by folks who answer the phone.

Pricing is by quote. Choose your options above and select Add to Quote, and our team will get back to you promptly with pricing and lead times.
